Grow Tent CFM Calculator
1. What is a Grow Tent CFM Calculator?
Definition: This calculator determines the required CFM (Cubic Feet per Minute) for proper air circulation in a room, based on its dimensions and desired air changes per hour (ACH). It supports both predefined room sizes (in inches) and custom inputs (in multiple units). Optionally, it can calculate LED grow light requirements (lux/m², PPFD, and hanging distance) for plant growth.
Purpose: It is used in HVAC design, ventilation planning, air quality management, and indoor plant growing to ensure adequate airflow and lighting for residential, commercial, or industrial spaces.
2. How Does the Calculator Work?
CFM Calculation: The calculator uses the formula: \( \text{CFM} = \frac{\text{Volume} \times \text{ACH}}{60} \), where:
- Volume is calculated as \( V = l \times w \times h \) (in cubic inches), then converted to cubic feet (\( 1 \, \text{cu.ft} = 1728 \, \text{cu.in} \)).
- For custom inputs, dimensions are converted to inches: 1 ft = 12 in, 1 cm = 0.393701 in, 1 m = 39.3701 in.
- ACH is the number of air changes per hour (default: 4).
LED Grow Light Calculation (Optional): If enabled:
- Total Lux: \( \text{Total Lux} = \text{Wattage} \times 110 \, \text{lux/W} \).
- Room Area: \( \text{Area (m}^2) = l \, (\text{m}) \times w \, (\text{m}) \).
- Lux per Square Meter: \( \text{Lux/m}^2 = \frac{\text{Total Lux}}{\text{Area (m}^2)} \).
- PPFD: \( \text{PPFD} = \left( \frac{\text{Lux/m}^2}{1000} \right) \times 25.69 \, \mu\text{mol/s/m}^2 \), based on 1000 lux/m² = 25.69 µmol/s/m².
- Recommended Hanging Distance: Based on the selected growth stage (e.g., Germination: 24" - 30", Flowering: 12" - 18").
Steps:
- Choose input type: predefined room size or custom dimensions.
- For predefined, select a room size from the list (e.g., 18" x 30" x 36").
- For custom, input length, width, and height, and select the unit (in, ft, cm, m; default: in).
- Specify the ACH (default: 4).
- Optionally, enable LED grow light calculations, select the plant growth stage (Germination, Seedling, Vegetative, Flowering), and input the LED wattage.
- Validate inputs (must be positive).
- Convert custom dimensions to inches, compute volume (convert to cubic feet), then calculate CFM.
- If enabled, calculate LED grow light lux/m², PPFD, and provide the recommended hanging distance.
- Display the results rounded to 2 decimal places, followed by a table of inline fan recommendations with links.
3. Importance of CFM and LED Calculations
Calculating CFM and LED requirements is essential for:
- HVAC Design: Ensuring proper ventilation for comfort and air quality.
- Plant Growth: Providing adequate light intensity (lux/m² and PPFD) and proper hanging distance for different growth stages, optimizing photosynthesis.
- Energy Efficiency: Avoiding over- or under-ventilation and over-lighting, which impacts energy costs.
- Health and Safety: Maintaining adequate airflow to remove pollutants, especially in confined spaces.
4. Using the Calculator
Examples:

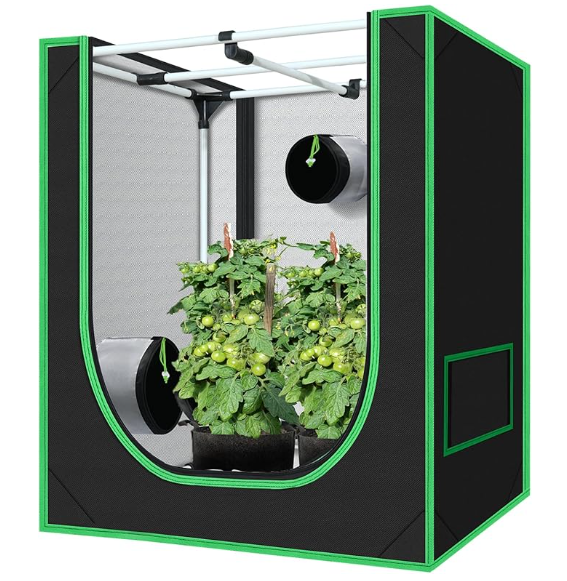

- Predefined Room (18" x 30" x 36"): Volume: \( 18 \times 30 \times 36 = 19,440 \, \text{cu.in} \), Volume in cu.ft: \( 19,440 \div 1728 = 11.25 \, \text{cu.ft} \), ACH = 4, CFM: \( (11.25 \times 4) \div 60 = 0.75 \, \text{CFM} \). Recommended fan: 50 CFM or higher.
- Custom Room with LED (Metric): Length \( l = 0.5 \, \text{m} \), Width \( w = 0.4 \, \text{m} \), Height \( h = 0.3 \, \text{m} \), ACH = 4, LED Wattage = 100 W, Growth Stage: Flowering
Convert to inches:
\( l = 0.5 \times 39.3701 = 19.685 \, \text{in} \), \( w = 0.4 \times 39.3701 = 15.748 \, \text{in} \), \( h = 0.3 \times 39.3701 = 11.811 \, \text{in} \)
Volume: \( V = 19.685 \times 15.748 \times 11.811 \approx 3662.5 \, \text{cu.in} \)
Volume in cu.ft: \( 3662.5 \div 1728 \approx 2.12 \, \text{cu.ft} \)
CFM: \( \text{CFM} = \frac{2.12 \times 4}{60} \approx 0.14 \, \text{CFM} \). Recommended fan: 50 CFM or higher.
Area: \( \text{Area} = 0.5 \times 0.4 = 0.2 \, \text{m}^2 \)
LED: Total Lux:
\( 100 \times 110 = 11000 \, \text{lux} \),
Lux/m²: \( \frac{11000}{0.2} = 55000 \, \text{lux/m}^2 \), PPFD: \( \left( \frac{55000}{1000} \right) \times 25.69 = 55 \times 25.69 = 1412.95 \, \mu\text{mol/s/m}^2 \), Recommended Hanging Distance: 12" - 18" (Flowering).
5. Frequently Asked Questions (FAQ)
Q: What is ACH?
A: ACH (Air Changes per Hour) is the number of times the air in a room is replaced in one hour. For example, 4 ACH means the air is fully replaced 4 times per hour.
Q: How do I choose an inline fan?
A: The table below the calculated CFM lists inline fans from 50 CFM to 400 CFM. Choose a fan with a CFM rating that meets or exceeds your calculated requirement. Click the "View Fan" link to see more details.
Q: What is PPFD and why is it important?
A: PPFD (Photosynthetic Photon Flux Density) measures the amount of light (in µmol/s/m²) available for photosynthesis per unit area. It’s crucial for plant growth, with different stages (e.g., germination, flowering) requiring different PPFD levels.
Q: Why does the hanging distance vary by growth stage?
A: Different growth stages require different light intensities. For example, seedlings need less intense light (higher distance, e.g., 24"), while flowering plants need more intense light (lower distance, e.g., 12" - 18") to optimize growth.
